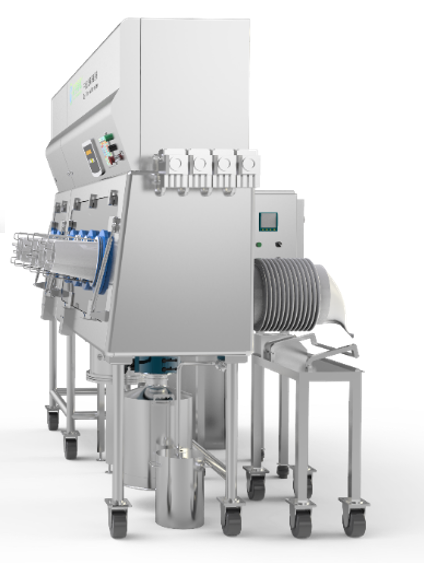

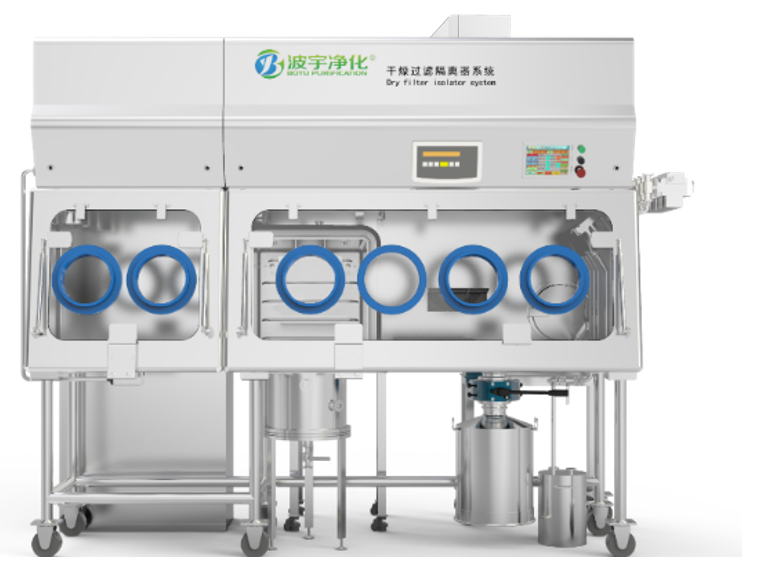

Filtering Dry Isolation System

Used for drying, weighing, filling, and filtering of high-potency API (OEB5 grade) materials, as well as for non-sterile raw material drug production processes such as non-pasteurized material protection, etc. It features a highly integrated vacuum oven, centrifuge, weighing and feeding, etc. Through nitrogen filling and negative pressure protection, it effectively "controls" the leakage of high-potency and toxic materials, meeting ATEX II explosion-proof requirements.

Product Applications: Liquid drying, centrifugation and weighing (for toxic and harmful liquids, etc.)

Protected Objects: Personnel and Environment

Product Features:

• Isolator design: buffer chamber + operating chamber, turbulent flow, negative pressure

• Material specifications: SUS304, R=20mm, T=3mm

• Control system: PLC control with intelligent monitoring of differential pressure and air change rate

• Material transfer: continuous closed-bag discharge for solids

• Weighing integration: integrated high-precision weighing system

• Equipment integration: integrated vacuum oven

• Crystallization process: centrifuge or basket filter selected based on process requirements

• Interior coating of oven, trays, and centrifuge with Teflon

• Explosion-proof measures compliant with ATEX II area standards

• CIP cleaning for centrifuge

• Mobile reactor and isolator connected in a sealed manner

• Equipment cleaning: CIP and manual cleaning

• Material transfer: continuous closed-bag discharge for solids
